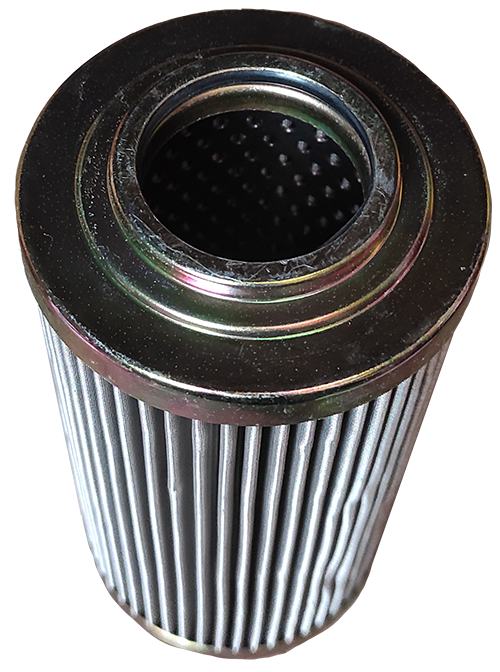

FHAS - SUCTION FILTER

“This filter is located on a suction port of the pump or submerged in the reservoir and attached to the suction line leading to the pump. High efficiency filters are usually not placed on the suction side as high differential pressure can cause pump failure.”

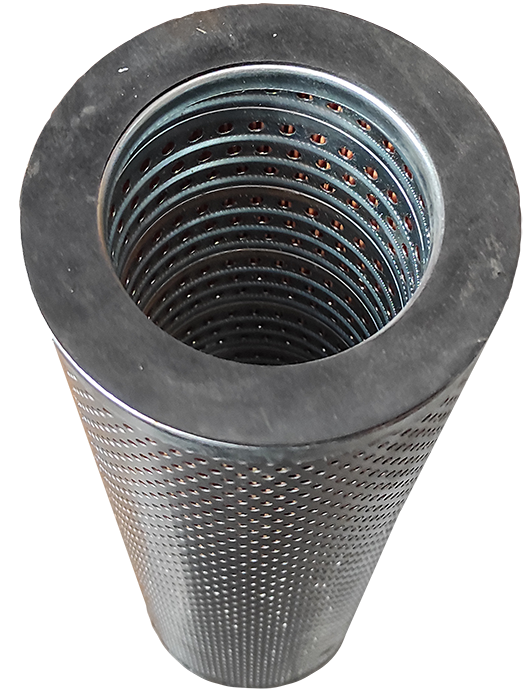

FHAS - RETURN FILTER

“FHAS return filters may be installed either in-line or inside the reservoir. There are varieties of filters available for each style assemblies. The designer of the system collects all flow from the system and directs it through the return line filter. Such an arrangement makes certain that the oil in the reservoir will be cleaned to desired ISO specification.”

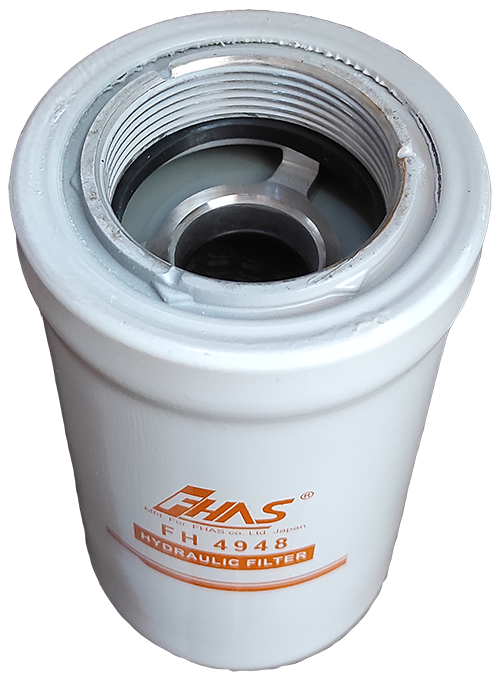

FHAS - PRESSURE FILTER

“This filter is generally installed between the pump outlet and the rest of the components in a hydraulic system. The idea here is to protect all components in a given system. High Pressure filters may be installed with or without a bypass valve.”

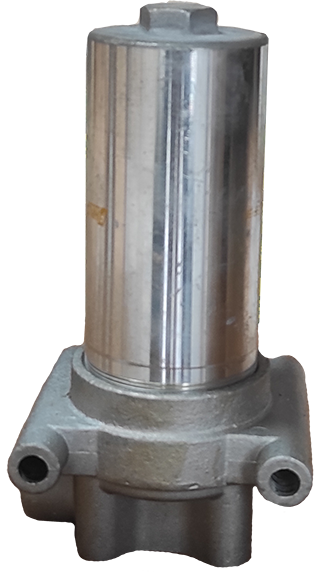

FHAS - PILOT FILTER

“Some systems have very sensitive components that see only a fraction of the flow. It is very easy to filter the entire system to the required cleanliness level or, as an alternative, a smaller filter with a fine filter media cab be installed in the critical leg of a system and the balance of the system can be fitted with an appropriate coarser filter.”
